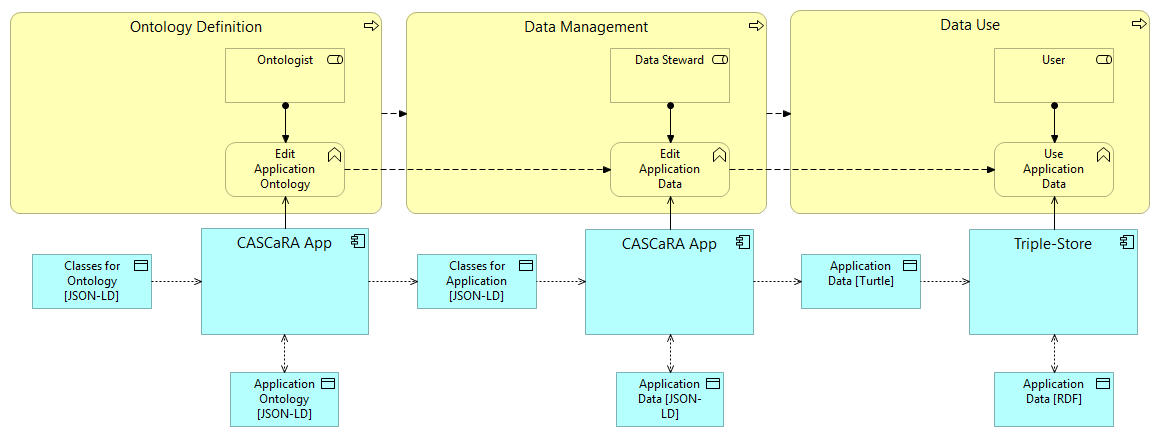

▣ From Ontology Definition to Data Management and Data Use

A process for ontology-based applications with three steps is shown:

The application ontology is edited using the PIG classes for ontologies. For example the terms (concepts) for library, book and author plus their relationships owned-by and written-by are defined.
The application data is edited using the classes for application as generated from the application ontology. For example, libraries, books and authors are defined with their relationships.
The application data is stored in a graph database, a so-called Triple-Store. For example, the users can query the data to list all libraries owning a given book or to list all authors found in a given library. The latter is a graph search which is particularly performant when graph databases are used.

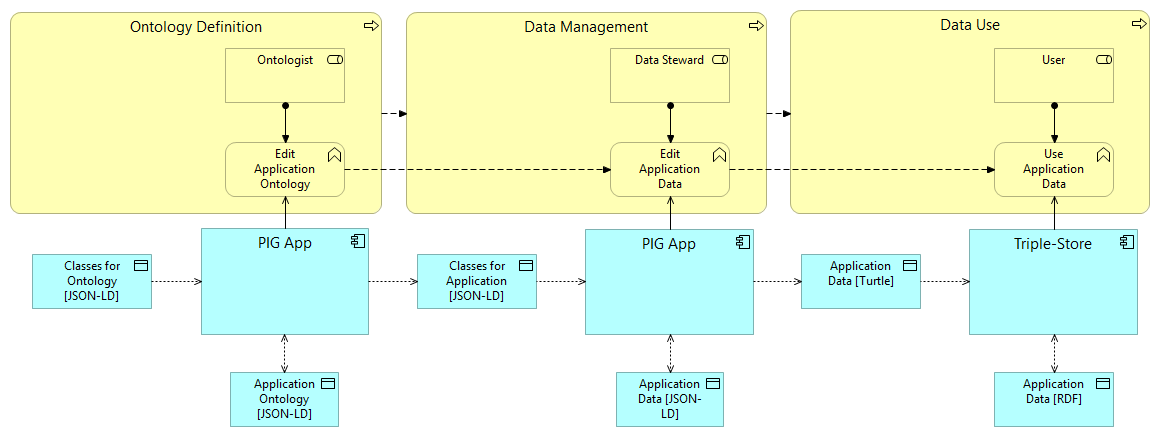

The process is shown using the ArchiMate notation. Business-related elements are yellow and IT-application-related elements are blue. The BPMN notation would show a lane per role Ontologist, Data Steward and User at the top and the business functions shown underneath as process steps within.

All data conforms to the Product Information Graph (PIG) metamodel, either in JSON-LD or Turtle format.

If you like, have a look at the demonstration:

Step	Libraries (Example )	Develop your own example
1	Open an Editor with loaded classes for building an ontology and some terms. You can add terms of the library domain.	Open an Editor with loaded classes for building an ontology. You can add terms of your application domain.
2	Inspect the Library Ontology as HTML.<br/>Download the Classes for Libraries (as generated from the Library Ontology) to laod in the editor in the next step.	Export SpecIF Class Definitions (third option) to load in the next step.
3	Open an Editor with loaded classes for managing libraries and some instances. You can add data according to the library ontology defined above.	Open an Editor ready to load classes for managing application data exported above. You can add data according to your application ontology.
4	Inspect the Library Data as HTML<br/>Download the Library Data as Turtle to load in the next step.	Export your application data (Turtle) to load in the next step.
5	Load the library data to your favorite graph database, e.g. Apache Fuseki.	Load your application data to your favorite graph database, e.g. Apache Fuseki.

Please note: The demonstration uses the SpecIF tools until the CASCaRA tools are available. If you like the approach, support our implementation team validating the CASCaRA standard in preparation!
